CK0640 CNC Lathe: The Ultimate Efficient Solution for Precision Machining of Small Parts | ALLES CNC

Are you machining small, complex metal components and struggling with the limitations of manual lathes or oversized CNC equipment? The challenge of achieving high precision on small diameters without sacrificing efficiency is real.

Introducing the ALLESCNC CK0640—a precision-engineered benchtop CNC lathe designed specifically for high-accuracy, high-volume production of small parts. This machine combines a compact footprint with robust performance, making it the ideal solution for workshops, R&D labs, and specialized production lines focused on electronics, communications, instrumentation, and medical device components.

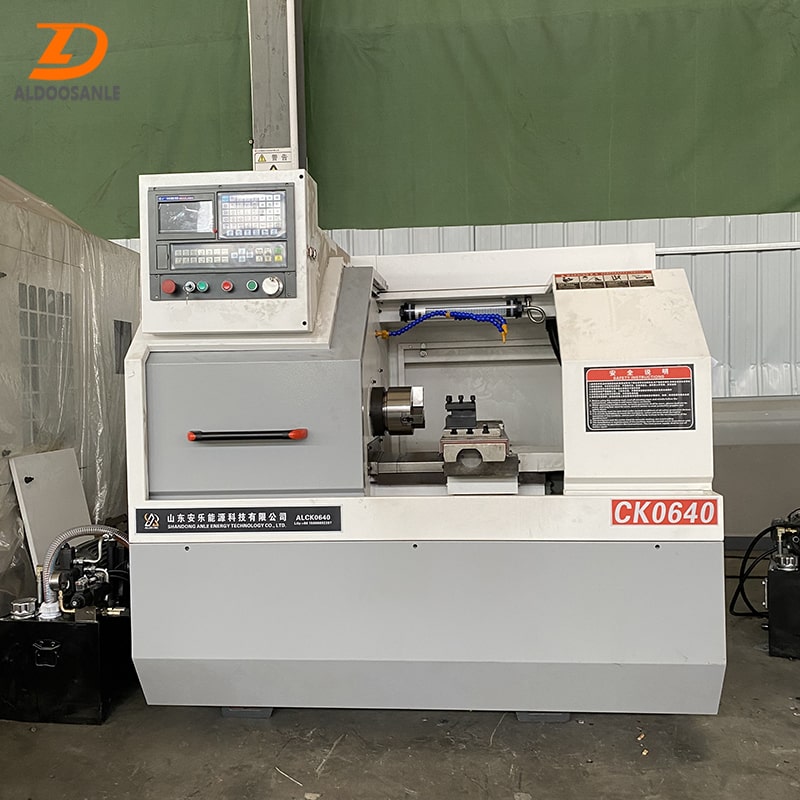

The ALLESCNC CK0640: Engineered for precision and efficiency in small parts manufacturing.

Why the CK0640 is the Ideal Choice for Small Part Machining

The CK0640 is not just a small lathe; it's a powerhouse built for precision. Its design focuses on the specific needs of machining smaller workpieces with exceptional accuracy and repeatability, all while offering incredible value.

Key Features & Benefits at a Glance:

Generous Spindle Capacity: A large Φ48 mm spindle through-hole combined with a Φ40 mm hollow chuck traction bar allows you to process bar stock up to Φ40 mm efficiently, minimizing material waste and setup time.
High-Speed Precision Spindle: With a maximum spindle speed of 3000 RPM, you can achieve superior surface finishes on a wide range of materials, including aluminum, brass, stainless steel, and engineering plastics.

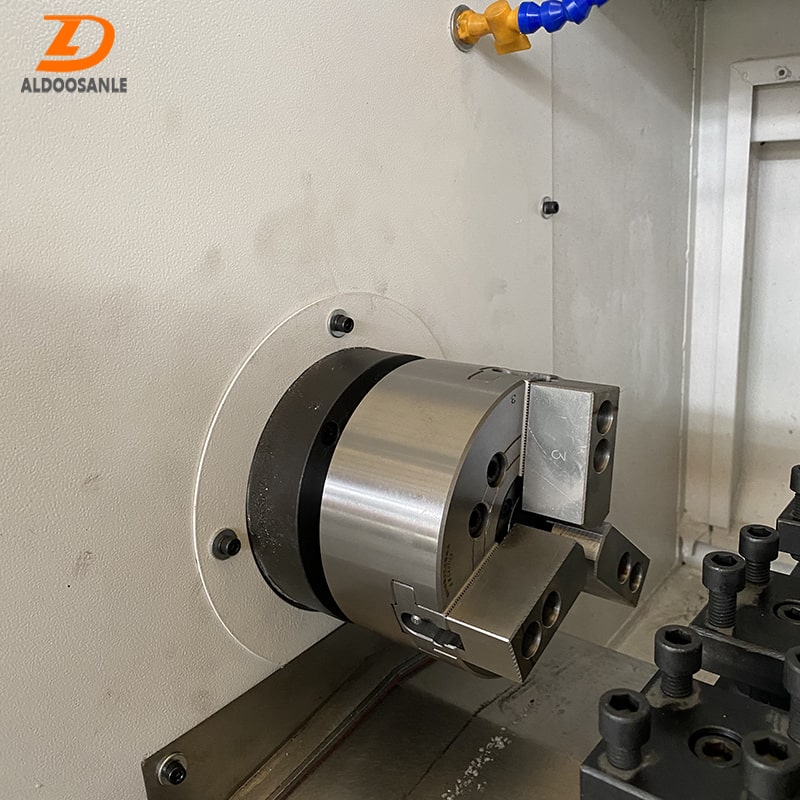

Pneumatic Chuck for Rapid Operation: The standard pneumatic chuck device ensures fast and consistent clamping, significantly reducing cycle times and boosting overall productivity.
Rigid Construction for Accuracy: Despite its compact size, the machine boasts a solid build with a 200 mm X-axis stroke (optional 300/400 mm available) and a 220 mm Z-axis stroke, providing ample travel for complex turning operations.

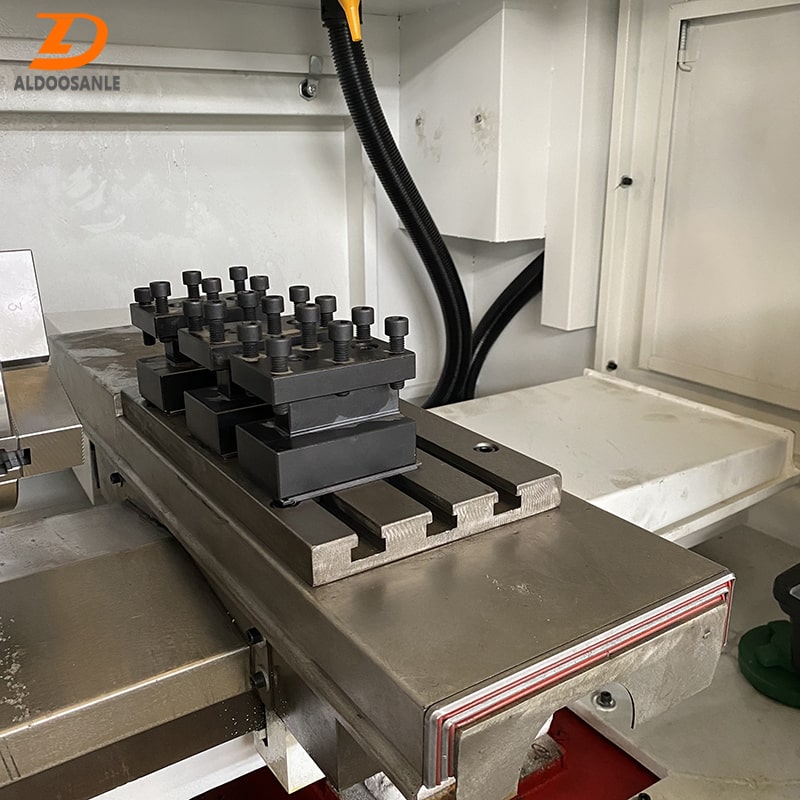

4-Station Tool Turret: The 20x20 mm square tool post with 4 stations allows for multiple tools to be set up simultaneously, enabling complex operations like turning, facing, grooving, and threading in a single setup.

Detailed Technical Specifications: ALLESCNC CK0640

Parameter	Unit	Value
Max. Swing Over Bed	mm	Φ250
Max. Swing Over Slide	mm	Φ120
Spindle Through-Hole Diameter	mm	Φ48
Max. Bar Processing Capacity	mm	Φ40
Spindle Speed Limit	rpm	3000
X-Axis Motor Torque	Nm	4
Z-Axis Motor Torque	Nm	4
X-Axis Stroke	mm	200 (Optional 300/400)
Z-Axis Stroke	mm	220
Rapid Traverse Rate (X/Z)	m/min	6/8
Turret Type		4-Station Tool Row
Tool Holder Size	mm	20x20
Clamping Device		Pneumatic Collet Chuck
Main Motor Power	kW	3 (4 kW Optional)
Tailstock		None (Standard)
X-Axis Repeat Positioning Accuracy	mm	±0.01
Z-Axis Repeat Positioning Accuracy	mm	±0.01
Control System		GSK TB3
Machine Weight	Kg	800
Machine Dimensions (LxWxH)	mm	1620×1340×1680

Who is the CK0640 Perfect For?

This machine is engineered for manufacturers who need to produce small, precision parts reliably and cost-effectively.

High-Volume Small Parts Shops: Ideal for producing connectors, pins, sleeves, and other components from bar stock under Φ40 mm.
R&D and Prototyping Labs: Its benchtop size and CNC precision make it perfect for developing and iterating complex small designs.
Specialized Suppliers: An excellent choice for businesses serving the medical, aerospace, electronics, and watchmaking industries where tight tolerances are non-negotiable.

The ALLESCNC Advantage: More Than Just a Machine

When you choose ALLESCNC, you invest in a partnership. We provide:

Direct Manufacturer Value: We design and build our machines, ensuring high quality control and eliminating middleman costs.
Reliable Performance: Key components are selected for durability and precision, guaranteeing long-term stability and minimal downtime.
Comprehensive Support: From installation guidance to operational training and readily available spare parts, our team is dedicated to your success.

Ready to Revolutionize Your Small Part Production?

Stop compromising on precision or efficiency. The ALLESCNC CK0640 offers a targeted solution that delivers professional results at an accessible price point.
