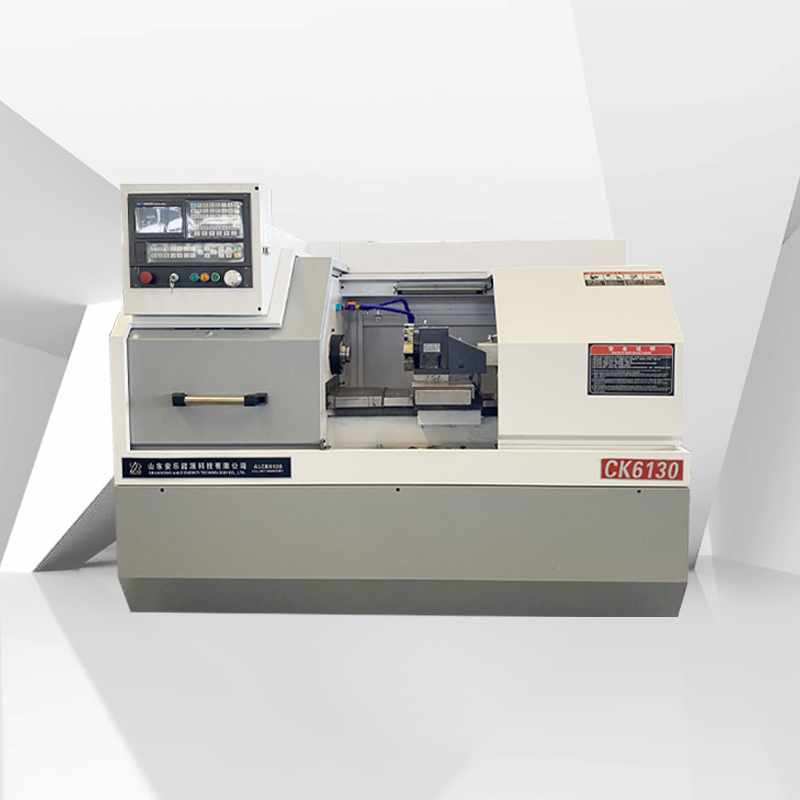

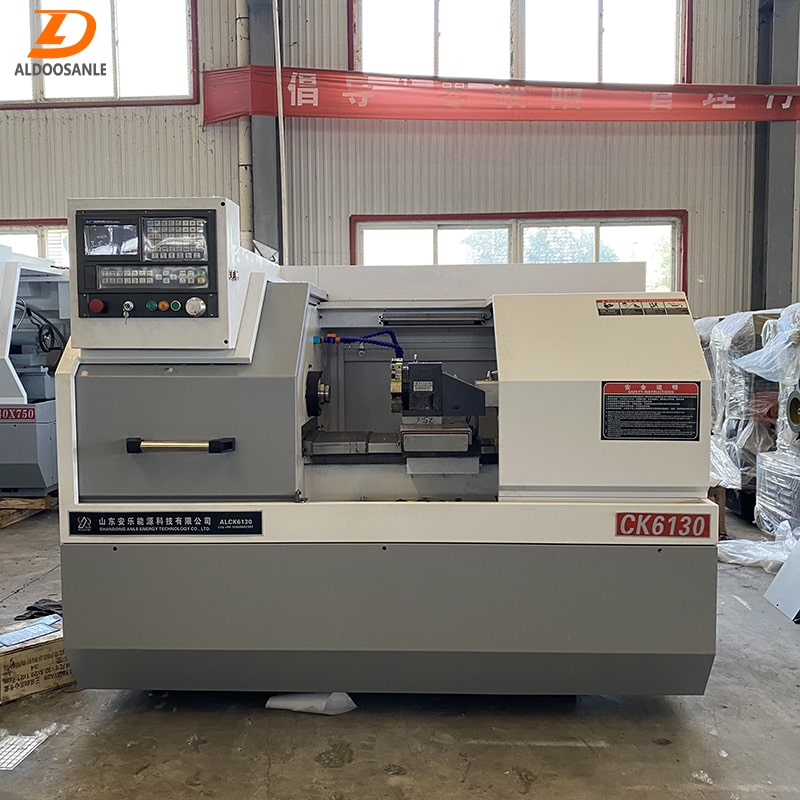

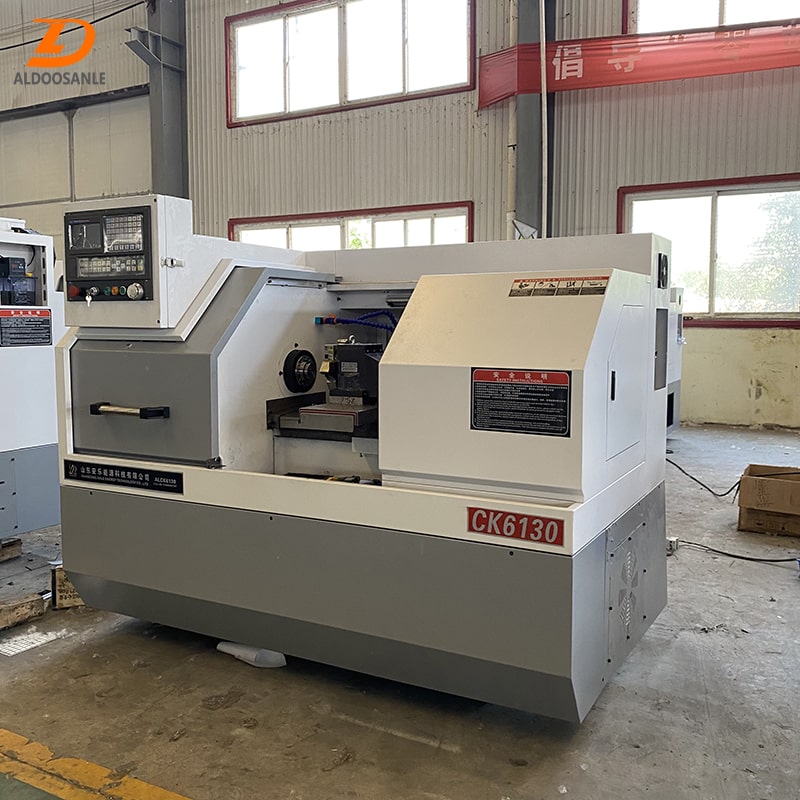

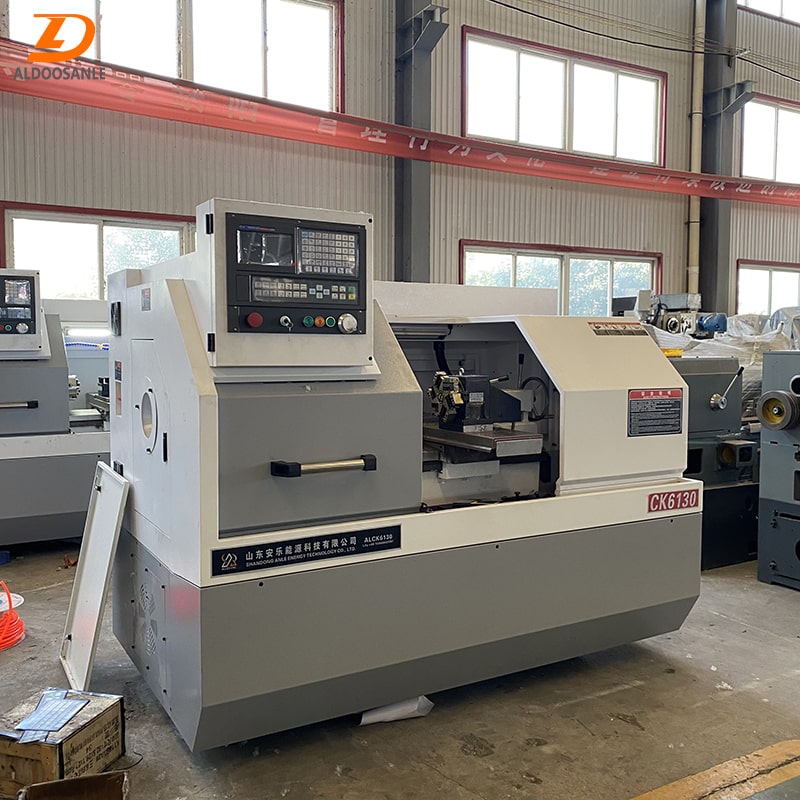

The structure is specially designed according to the requirements of turning processing, and the CNC Lathe Machine Horizontal is formed with a general numerical control system.
The CNC system of Turning Machine CNC Lathe has strong functions, high degree of automation and high machining accuracy, and is suitable for turning of general rotary parts.
CNC Lathe Machine Metal Horizontal is mainly used for machining various shaft parts. CNC Lathe Machine Metal can turn various threads, arcs, cones and rotating inner and outer surfaces.
CNC Lathe Machine Horizontal can meet the speed requirements of high-speed cutting of ferrous and non-ferrous materials.
Product Features
1. The integral cast iron base of the high precision cnc lathe, the iron filings and the coolant are collected in a separate box, which is easy to clean.
2. The bed guides of the flat bed cnc lathe machine are induction hardened and precision ground, and the longitudinal and lateral sliding guides are made of composite materials, which have good shock resistance and wear resistance.

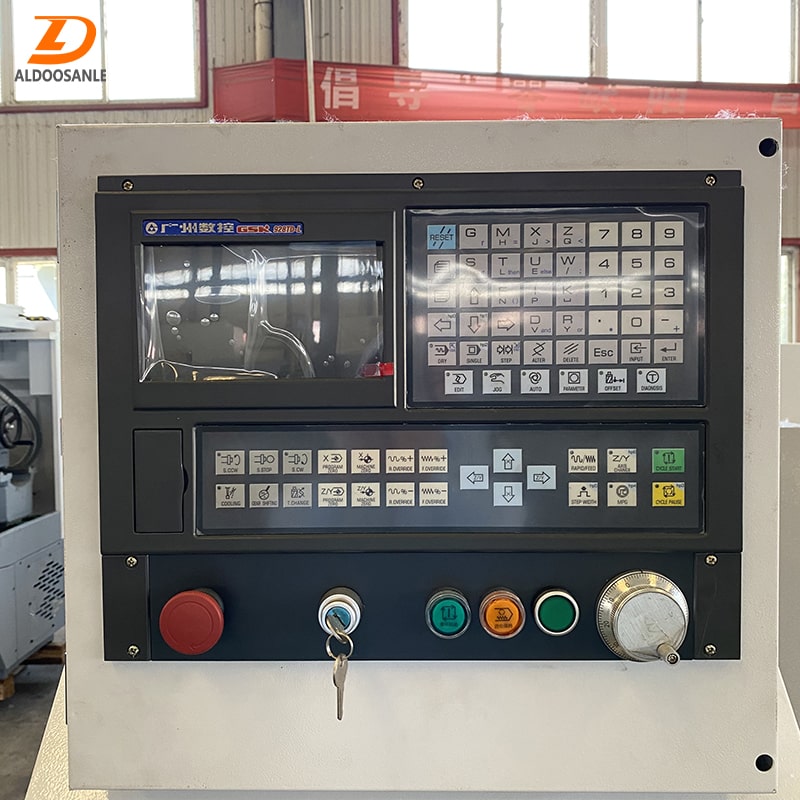

3. The numerical control system of cnc lathe manufacture adopts full-function economical numerical control system, which is easy to operate and has stable and reliable performance.
4. The main shaft of the lathe machine adopts stepless speed regulation and has the function of constant linear speed processing to meet the requirements of different diameter processing surfaces.
5. The mini lathe machine adopts the braking function of the frequency converter to make the spindle stop quickly and smoothly.
6. The mini metal lathe machine runs smoothly at low speed, and has a large load torque at high speed.
7. The machine tool of cnc lathe machine has good rigidity and high motor power, which can meet the requirements of large cutting amount.
Product application
1. Information industry
In the information industry, from computers to networks, mobile communications, telemetry, remote control and other equipment, it is necessary to use manufacturing equipment based on ultra-precision technology and nanotechnology, such as wire bonders for chip manufacturing, wafer bonders and lithography machines. etc., the control of these equipments requires the use of numerical control technology.
2. Medical equipment industry
In the medical industry, many modern medical diagnosis and treatment equipments use numerical control technology, such as CT diagnostic instruments, whole-body knife treatment machines, and vision-guided minimally invasive surgical robots.
Video
Product Parameters
| Item | Unit | ALCK6130 |
| Max swing over bed | mm | Φ300 |
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 2200 |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 280 |
| Z stroke | mm | 500 |
| Dimensions (length × width × height) | mm | 1600×1100×1650 |
