Product Description
The tool detection device of the Slant bed cnc lathe machine can automatically input the position data of the tool tip into the numerical control system, which greatly reduces the adjustment time when changing the tool.
The cnc slant bed lathe machine meets the requirements of high speed and high efficiency, reduces frictional resistance and temperature rise deformation, improves machining accuracy, and can ensure long-term stability of cutting machining accuracy.
Product Features
1. The CNC slant bed lathe machine adopts the overall inclined bed structure, which can still maintain the stability of the precision of the machine tool during heavy cutting.

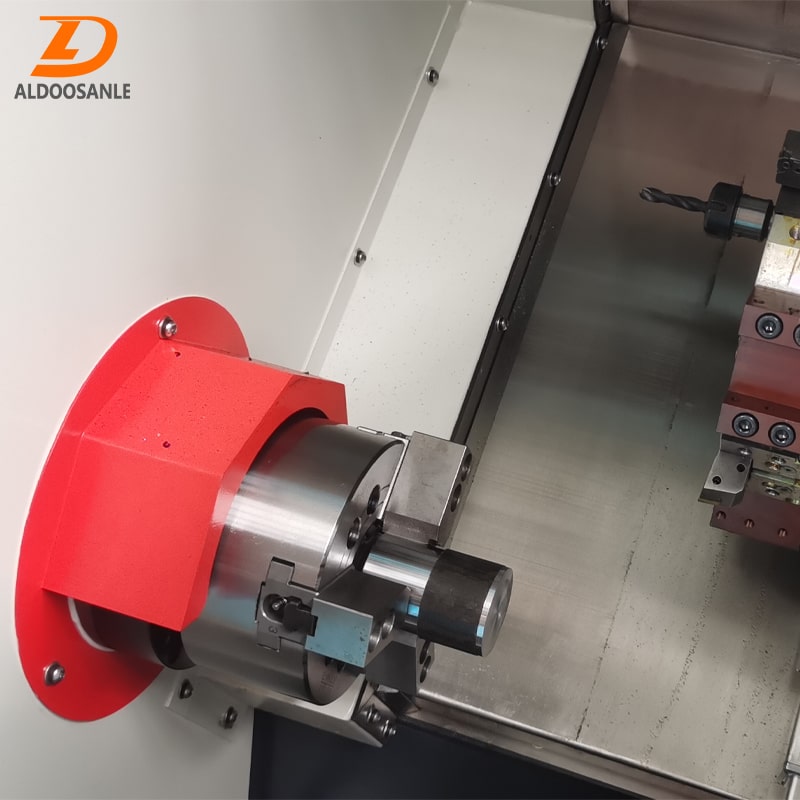

2. During the design of CNC lathe slant bed machine, the spindle box has taken corresponding measures to reduce the thermal deformation of the spindle, so that the spindle can maintain the relative stability of the spindle axis during long-term work.
3. The CNC lathe machine slant bed is protected by full guide rails, and the cooling box and the chip conveyor are separated from the main machine to ensure that the machine tool accuracy is not affected by thermal cutting.
4. The cross-sectional area of the Slant bed cnc lathe machine is larger than that of the flat bed of the same specification, that is, it has stronger anti-bending and anti-torsion capabilities.
5. The layout of the Metal slant bed cnc machine can directly affect the clearance of the ball screw in the X direction, and the gravity directly acts on the axial direction of the screw, so that the backlash during transmission is almost zero.
6. Metal cnc lathe machine is generally equipped with automatic chip removal machine, which can automatically remove chips and increase the effective working time of workers.
Product application
Metal slant bed cnc machine is suitable for automatic cutting of various internal and external rotating surfaces and internal and external metric and inch threads of short shaft or disc parts. Machining of threads and complex surfaces.
Metal cnc lathe machine can be used for rough and finish machining of various high-temperature alloys, titanium alloys, heat-resistant alloys, stainless steel, cast iron, cast steel and other castings and forgings, and is used in automobiles, motorcycles, electronics, aerospace, military, petroleum and other industries.
Video

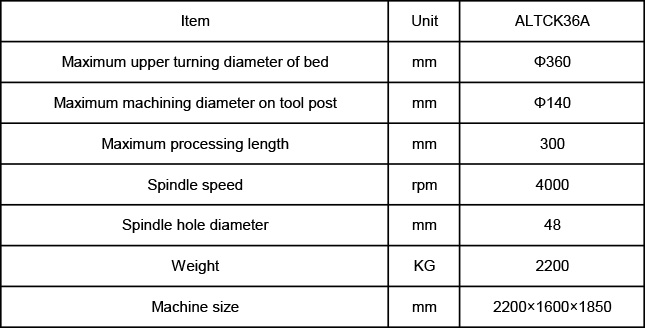

Product Parameters
