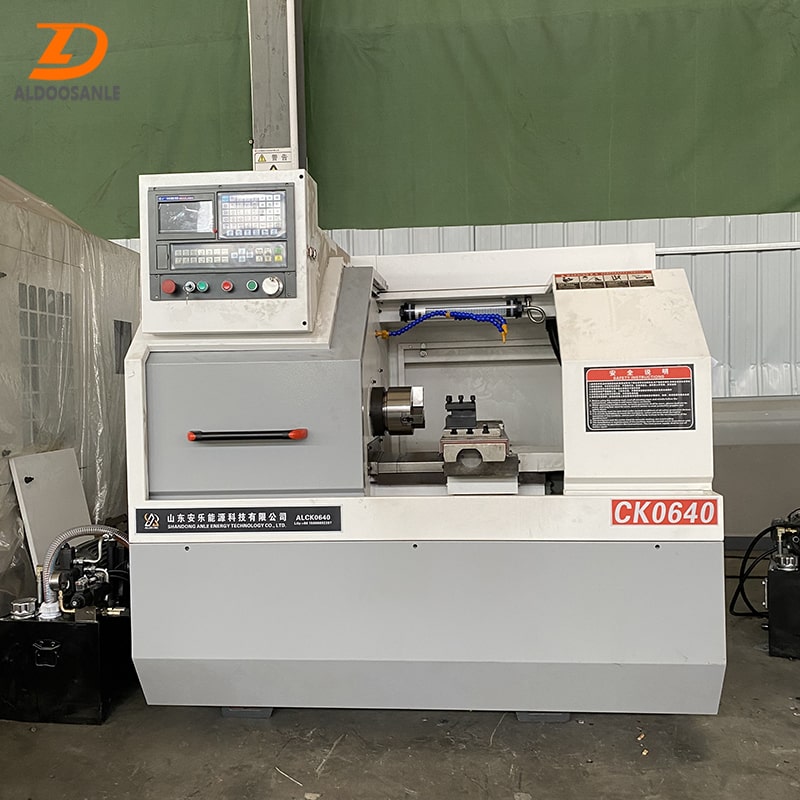

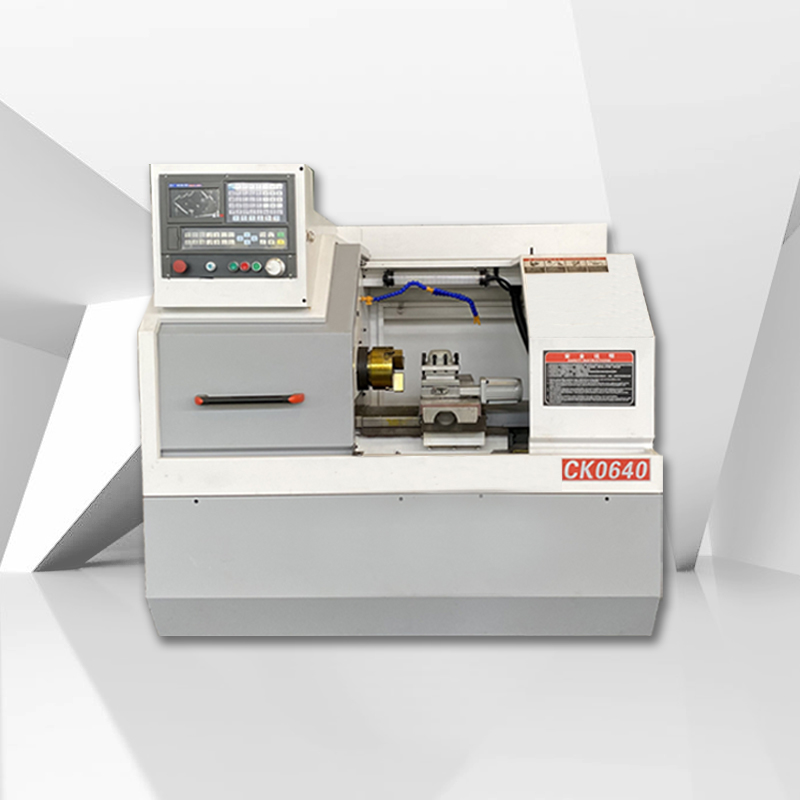

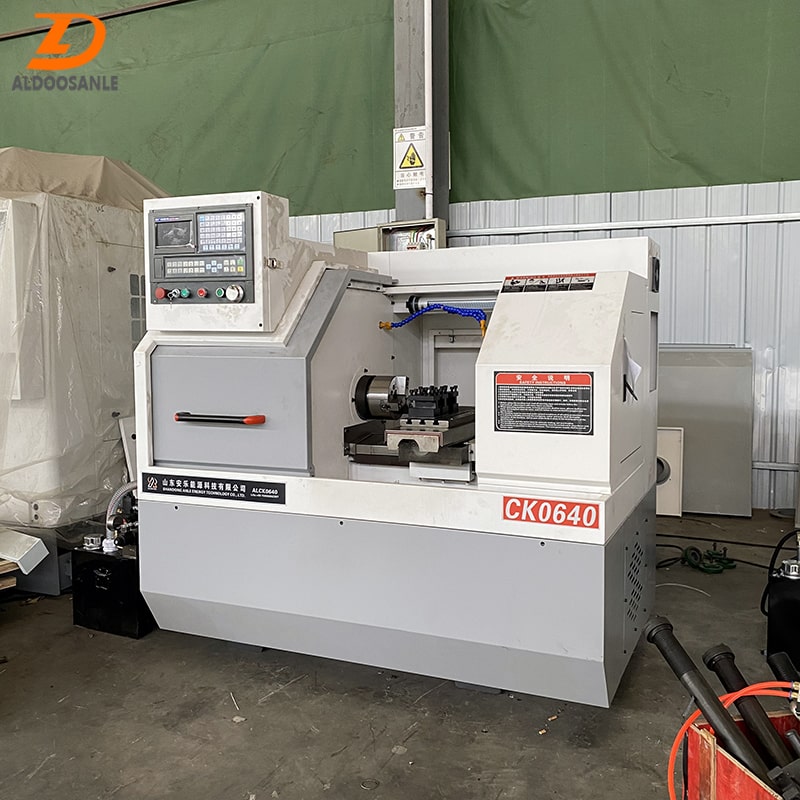

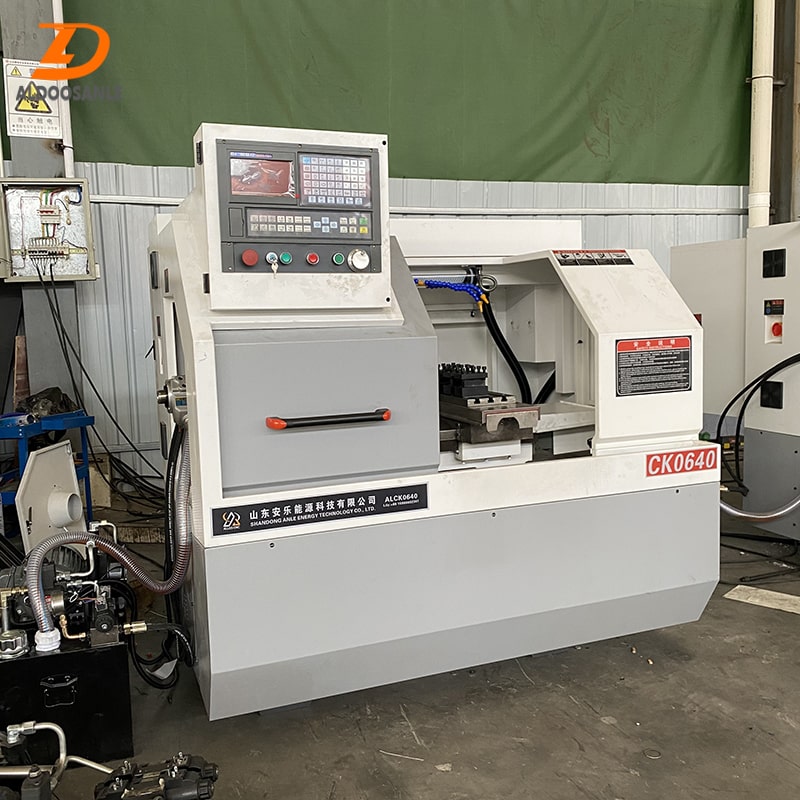

ALCK0640 cnc lathe machine has the characteristics of high processing precision, high productivity, high sensitivity, high rigidity, high automation, high shock resistance, small thermal deformation, high reliability, mechatronics, strong adaptability, and good flexibility.
ALCK0640 cnc lathe machine is widely used in heavy-duty turning and has higher productivity. Its main uses are: machining complex geometric shapes and various sizes, mainly used for machining workpieces such as short shafts and disks. In addition, it can also process various metric and imperial internal and external threads. After the power head is installed on the flat rail CNC lathe, the peripheral surface and end surface of the workpiece can be milled or drilled.
1. ALCK0640 horizontal cnc lathe machine has high processing precision and stable processing quality;
2. Multi-coordinate linkage can be carried out, and parts with complex shapes can be processed;
3. ALCK0640 horizontal cnc lathe machine generally only needs to change the NC program when the processing parts are changed, which can save production preparation time;
4. ALCK0640cnc lathe machine itself has high precision and high rigidity, can choose favorable processing dosage, and has high productivity
5. ALCK0640cnc lathe machine is designed with electromechanical and hydraulic integration, reasonable layout, compact structure and complete functions
1. Aerospace industry: ALCK0640 cnc metal lathe is widely used in the manufacture of aircraft engine parts, aircraft structural parts, aerospace instruments and spacecraft components, etc. The high-precision requirements of the aerospace industry for parts make this CNC lathe an essential processing equipment.
2. Shipbuilding and nautical industry: ALCK0640 cnc metal lathe is used in the manufacture of large crankshafts in ships, marine machinery and instrument manufacturing, etc. ALCK0640 cnc metal lathe provides efficient, convenient and precise production capability.
3. Arms manufacturing industry: ALCK0640 cnc turning center is used in the development and design of multi-station processing of complex parts, mainly used for grinding the inner holes and end faces of discs, shafts (or similar parts), suitable for parts Mass production has the unique advantages of high precision and high efficiency.
4.Power generation equipment manufacturing industry: ALCK0640 cnc turning center is widely used in processing key components of wind turbines, such as horizontal spindles, wind wheels, gearboxes, generators, etc. It is difficult to process and requires high precision. This CNC machine tool can better solve the problem Solved complex, precise, small batch, multi-variety parts processing problems。

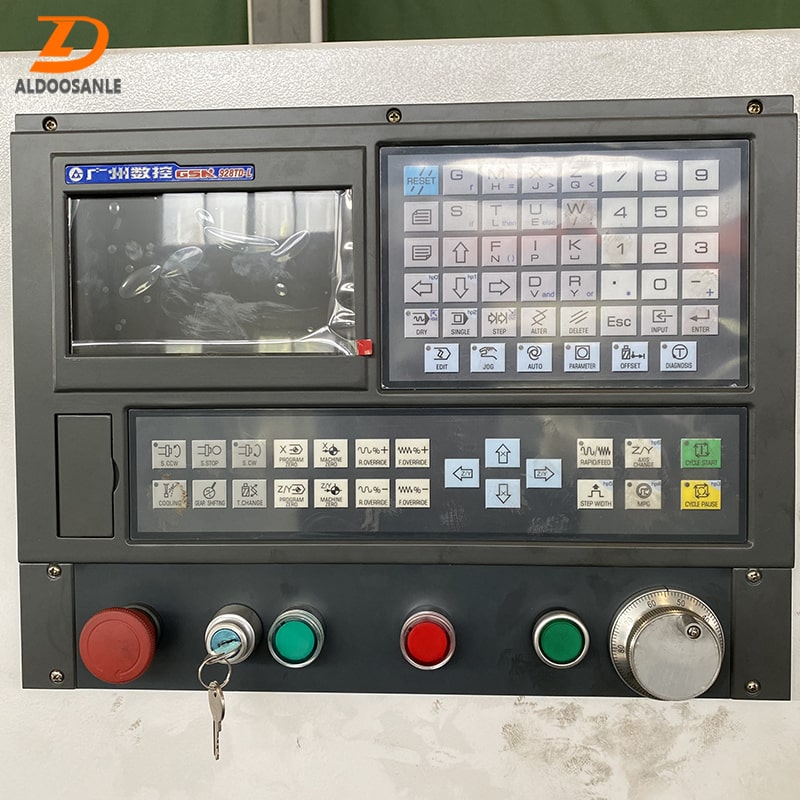

1. The numerical control system adopts FANUC numerical control system;
2. X-axis and Z-axis adopt three-phase hybrid stepping drive;
3. X-axis and Z-axis use ball screw;
4. The spindle is continuously variable;
5. The row tool holder has no tailstock;
6. The guide rail and screw rod of the machine tool adopt manual centralized lubrication;
7. Closed protection of machine tools.

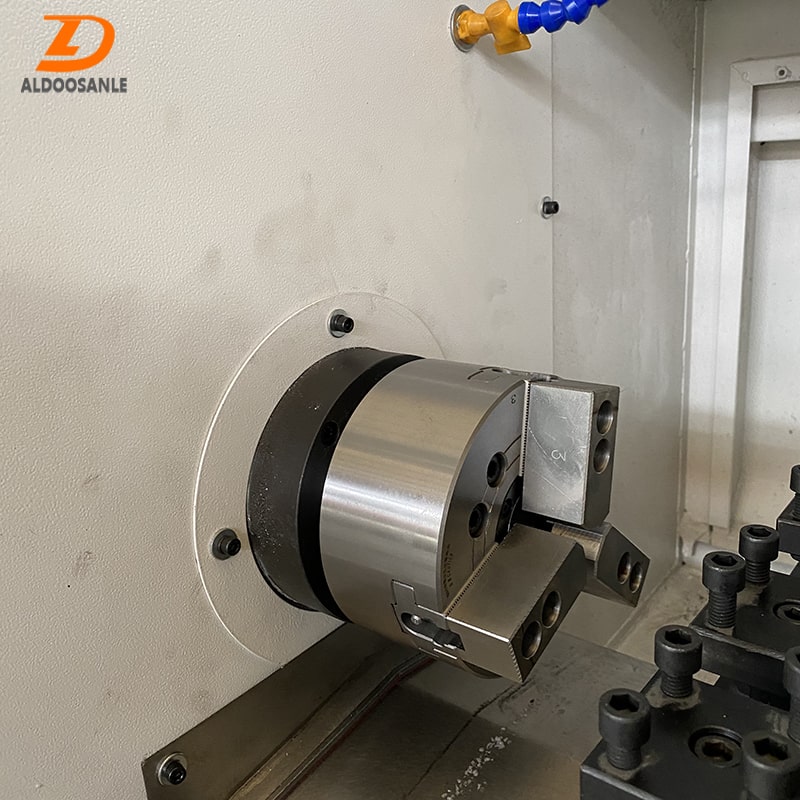

1. Claw chuck;
2. Manual tailstock
3. Chuck;

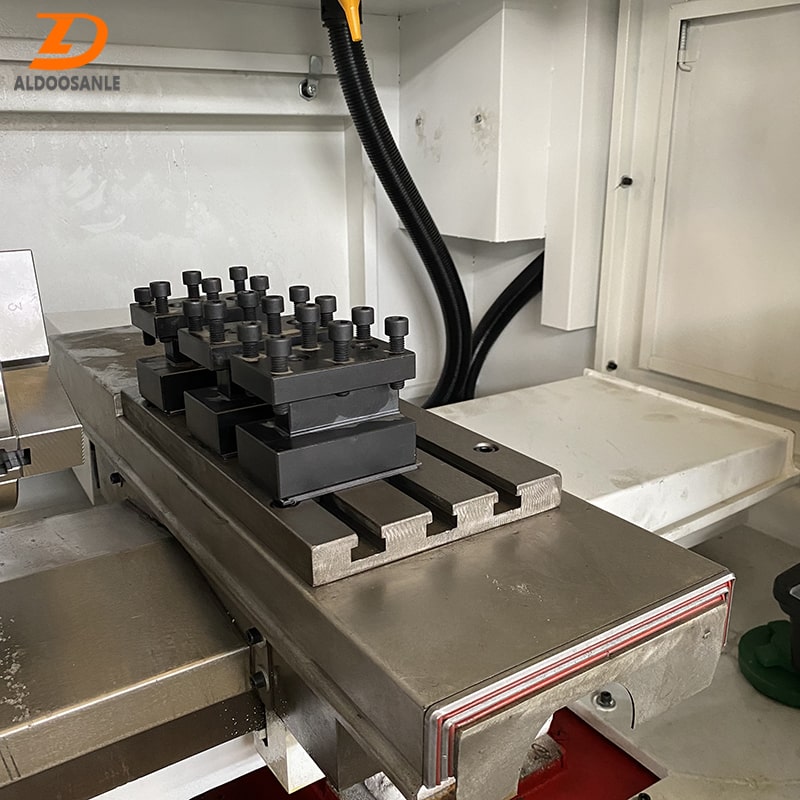

4. Arranging tools;
5. Positioning tool;
6. Siemens CNC system.
Item |
unity |
ALCK0640 |
Max swing over bed |
mm |
Φ250 |
X-axis motor torque |
4Nm |
|
Z-axis motor torque |
4Nm |
|
Maximum swing over slide |
mm |
Φ120 |
Spindle hole diameter |
mm |
Φ48 |
Tool post form |
Row tool |
|
With hollow chuck pull rod through hole |
mm |
Φ40 |
Spindle speed limit |
rpm |
3000 |
Clamping device |
Pneumatic collet |
|
Knife square size |
mm |
□20×20 (four stations) |
X/Z direction fast moving speed |
m/min |
6/8 |
X stroke |
mm |
200(Optional 300/400mm) |
Z stroke |
mm |
220 |
Main motor power |
KW |
3(Optional 4kw) |
Tailstock | No tailstock | |
X axis repeat positioning accuracy |
mm |
0.01 |
accuracy |
||
Z axis repeat positioning accuracy | mm | 0.01 |
Machine weight |
Kg |
800 |
Dimensions (length × width × height) |
mm |
1620×1340×1680mm |
Control system | GSKTB3 |
