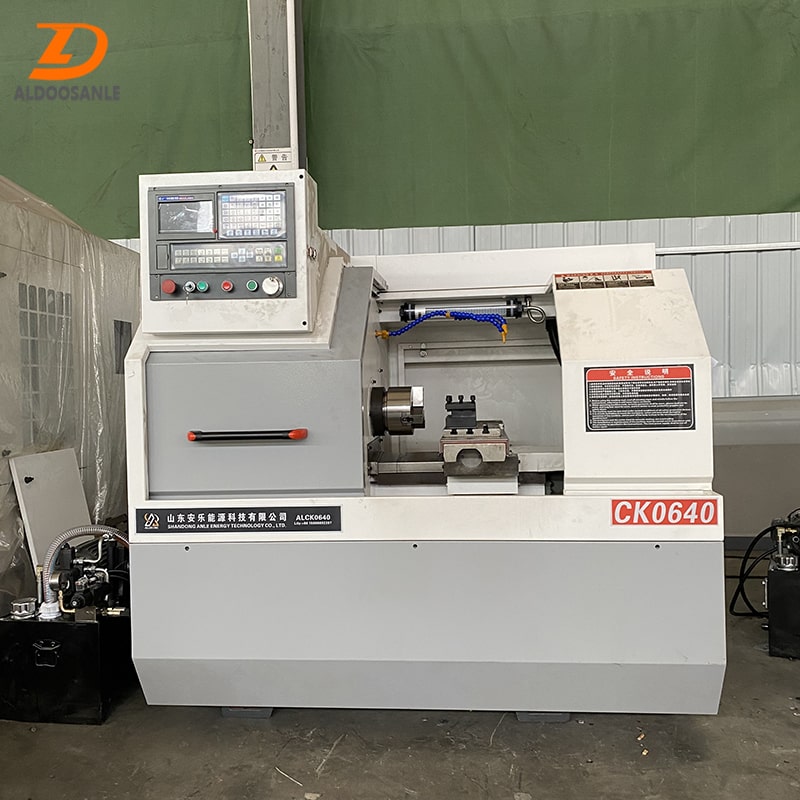

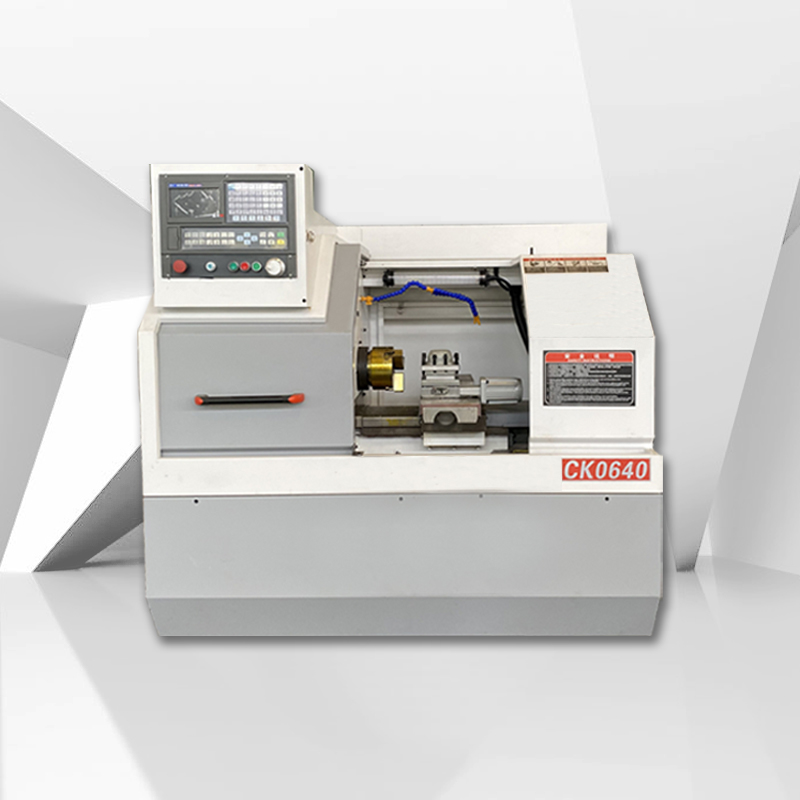

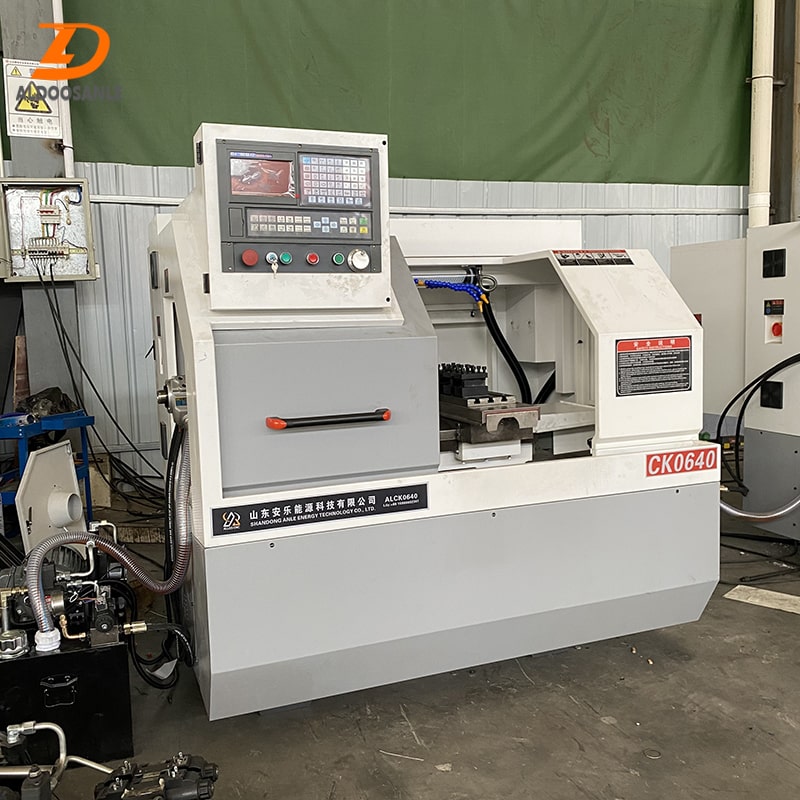

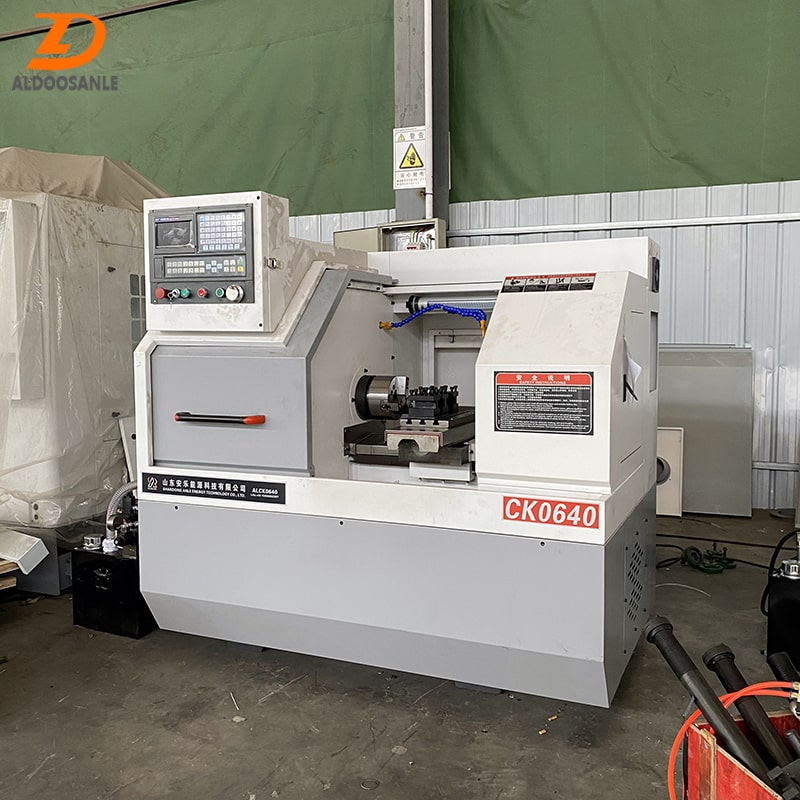

CNC Lathe Metal is mainly composed of host, CNC device, driving device, auxiliary device and other auxiliary equipment.
Automatic CNC Lathe is mainly used for grooving, end face, cone, taper, taper and spherical surface of various workpieces.
CNC Lathe Flat Bed is suitable for processing shaft or disc parts with complex shapes and high precision requirements.
Product Features
1. The stop speed of CNC Lathe is fast and stable, which can make the motor slow down and stop in a shorter time.
2. Speed accuracy and stability of CNC Horizontal Lathe: The linearity of the speed setting is good, and the speed stabilization accuracy is high.
3. The grid voltage of CNC Lathe Flat Bed is applicable to a wide range: the advanced switching power supply design can be applied to various grid environments.
4. The exquisite production process of High Precision CNC Lathe: Adopting a unique coating thickening process, it has strong adaptability to harsh physical environments such as metal dust, corrosive gas, and humidity.
Product Application
1. Application of high precision cnc lathe in aerospace industry:
Flat bed cnc lathe machine plays a big role in the manufacture of aircraft wing, fuselage, tail and engine parts.
2. Application of precision cnc lathe machine in automobile manufacturing industry:
The automobile manufacturing industry is a large demand for machine tools, accounting for about 40% of the total consumption of machine tools.
Among them, cnc lathe metal accounts for the vast majority of auto parts production.
3. Application of precision CNC Lathe Metal in the weapon manufacturing industry:
The weapons manufacturing industry needs CNC machine tools in a large amount and a wide range, requiring reliable and stable CNC machine tools.
Among them, in the weapons manufacturing industry, CNC Lathe is required the most.
Video
CNC Lathe Machine Horizontal ALCK0640 machine display and thread processing.
Product Parameters
| Item | Unit | ALCK0640 |
| Max swing over bed | mm | Φ250 |
| Maximum swing over slide | mm | Φ120 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 3000 |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 200(Optional 300/400mm） |
| Z stroke | mm | 220 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 800 |
| Dimensions (length × width × height) | mm | 1620×1340×1680mm |
